3 maja 2016

PS-00027: internal error You configured a generic WLS LDAPAuthenticator

Zaszufladkowany do: ADF,Oracle,Programowanie,WebLogic — Tagi: , — Jacek @ 07:38

Oracle/Middleware/user_projects/domain/domain_name/config/ and open config.xml.

<sec:authentication-provider xsi:type=”wls:ldap-authenticatorType”>

manually change authenication-provider type to “wls:active-directory-authenticatorType”.



JPS-00027: internal error

Zaszufladkowany do: ADF,Oracle,Programowanie,WebLogic — Tagi: , — Jacek @ 07:18

So the admin server cannot be started because of the wrong authenticator type. But here is how to manually change the authenticator type. Target




2 maja 2016

weblogic.common.ResourceException: DataSource PRD already exists

Zaszufladkowany do: ADF,Oracle,Programowanie,WebLogic — Tagi: , — Jacek @ 12:07

Application->Application Properties. Expand the Deployment tree, click Weblogic. There is an “auto generate and synchronize WebLogic JDBC Descriptors during deployment” checkbox.

30 kwietnia 2016

weblogic: The task cannot be processed further until the current edit session is activated

Zaszufladkowany do: WebLogic — Tagi: — Jacek @ 10:43

That message is not an error. It means that you need to connect to the WebLogic Server Console and activate the changes.


Access the WebLogic Server Console and click on Activate Changes.

Confirm if your application shows in the WebLogic Server Console under “Deployments”.



11 marca 2015

Unable to reserve the .lok file for Integrated WebLogic Server (IntegratedWebLogicServer).

Zaszufladkowany do: Oracle,WebLogic — Tagi: — Jacek @ 09:18

Oracle JDeveloper

When JDeveloper closes unexpected without shutting down IntegratedWebLogicServer, trying to start IntegratedWLS next time, gives “Unable to reserve the .lok file for Integrated WebLogic Server (IntegratedWebLogicServer).”

First Solution is to kill the process in Task Manager. Open Task Manager & check for java.exe process for higher memory consumption. End the process.

IF above does not help then go to C:\Users\RRA\AppData\Roaming\JDeveloper\system11.\DefaultDomain . Delete the edit.lok file.


25 stycznia 2011

Konfiguracja Oracle WebLogic Server.

Zaszufladkowany do: WebLogic — Tagi: — Jacek @ 08:52

A domain can include multiple WebLogic Server instances. A minimal domain contains only one WebLogic Server instance, which functions both as an Administration Server and as a Managed server—such a domain can be useful while developing applications.

A Managed Server is a WebLogic Server instance that retrieves its configuration data from the domain’s Administration Server. There can be many Managed Servers in a domain, but only one Administration Server.
Any server instance that you define for a domain can run as an Administration Server or a Managed Server.There is no attribute within a server’s configuration that designates it as an Administration Server or Managed Server. Instead, the first server instance that you start in a domain always functions as the Administration Server.

Konfiguracja NodeManager’a:
The WebLogic Server installation process installs Node Manager as an operating system service: a daemon on UNIX systems, or a Windows service on Windows systems. By default, the operating system service starts up Node Manager to listen on localhost:5555.
The directory WL_HOME\server\bin (where WL_HOME is the top-level directory for the WebLogic Server installation) contains uninstallNodeMgrSvc.cmd, a script for uninstalling the Node Manager service, and installNodeMgrSvc.cmd, a script for installing Node Manager as a service.

Naszym celem będzie skonfigurowanie Administration Servera i Managed Servera na naszym hoście (Linux Fedora 14, 64 bit)
Staname wyjściowym jest zainstalowany WebLogic Server. Nie ma na razie zainstalowanego Administration Servera and żadnego Managed servera.
Uruchamiamy nasz słynny skrypt:

Wybieramy “Getting started …”

W tej chwili mamy zainstalowane: Administration Server (admserver) i Managed Server (ManagedServer1).
Czas na uruchomienie admserver’a:
cd /home/oracle/Oracle/Middleware/user_projects/domains/admserver
startWebLogic.sh &

Zobaczmy co się dzieje na konsoli:

Jak widać, mamy dwa serwery. Jeden (admserver) nawet działa :-)
Aby uruchomić ManagedServer1 będziesz musiał wcześniej uruchomić NodeManager’a.

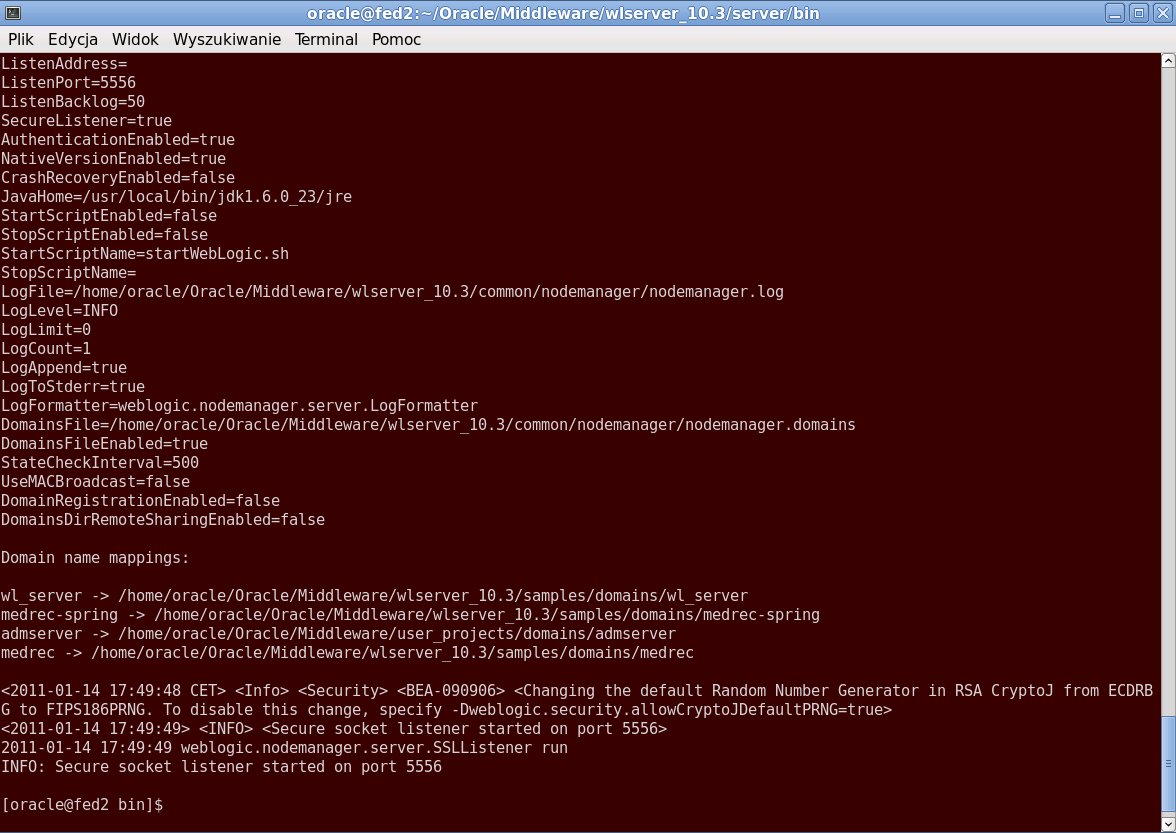

Uruchomienie NodeManager’a
zobaczymy odpowidnie komunikaty:

Teraz możemy wrócić do konsoli i uruchomić ManagedServer1

No i działa :-)


20 stycznia 2011

Oracle Fussion Middleware: Oracle WebLogic Server installation.

Zaszufladkowany do: WebLogic — Tagi: , — Jacek @ 09:32

WebLogic Server - implements JEE technologies, Web services and other standards, to provide a framework for highly available, scalable and secure applications. Java EE5- compliant application server runtime. Contain Web browser-based, graphical user interface to manage w WebLogic Server domain.

Oracle WebLogic Server is a scalable, enterprise-ready Java Platform, Enterprise Edition (Java EE) application server. The WebLogic Server infrastructure supports the deployment of many types of distributed applications and is an ideal foundation for building applications based on Service Oriented Architectures (SOA). SOA is a design methodology aimed at maximizing the reuse of application services. See http://www.oracle.com/technology/tech/soa/index.html.
The WebLogic Server complete implementation of The Sun Microsystems Java EE 5.0 specification provides a standard set of APIs for creating distributed Java applications that can access a wide variety of services, such as databases, messaging services, and connections to external enterprise systems. End-user clients access these applications using Web browser clients or Java clients. It also supports the Spring Framework, a programming model for Java applications which provides an alternative to aspects of the Java EE model. See Programming Models.

  • Web Applications provide the basic Java EE mechanism for deployment of dynamic Web pages based on the Java EE standards of Servlets and Java ServerPages (JSP). Web applications are also used to serve static Web content such as HTML pages and image files.
  • Web Services provide a shared set of functions that are available to other systems on a network and can be used as a component of distributed Web-based applications.
  • XML capabilities include data exchange, and a means to store content independent of its presentation, and more.
  • Java Messaging Service (JMS) enables applications to communicate with one another through the exchange of messages. A message is a request, report, and/or event that contains information needed to coordinate communication between different applications.
  • Java Database Connectivity (JDBC) provides pooled access to DBMS resources.
  • Resource Adapters provide connectivity to legacy and other external enterprise systems.
  • Enterprise JavaBeans (EJB) provide Java objects to encapsulate data and business logic.
  • Remote Method Invocation (RMI) is the Java standard for distributed object computing, allowing applications to invoke methods on a remote objects

WebLogic Server Components:

Web 2.0 HTTP Pub-Sub Server – a channels based subscribe/publish mechanism for web based clients to send and receive asynchronous messages over HTTP

WebLogic SCA - a spring container, based on the SCA Spring Component Implementation Specification, for deploying Java applications containing POJOs wired with SCA semantics.

WebLogic JDBC Drivers – collection of JDBC drivers and tools that can be used to connect to a database. Supported datbases: DB2, Informix, Oracle, SQL Server, Sybase. WebLogic include also third party drivers.

WebLogic Server Clients - thin client jars required to connect a remote client to a WebLogic server, including RMI clients, WSEE  clients, JMS clients

WebLogic Web Server Plugins – plugins used to proxy and load balance HTTP requests from a Web server to WebLogic Server.

UDDI and Xquery Support – implementation for UDDI and a UDDI Explorer application which allows authorized users to publish Web Services in private WebLogic Server UDDI registries. Includes implementation of the Xquery standard.

Evaluation Database – allows to run code examples with functional database server. A Derby is included – an open source relational database implemented entirely in Java.

Oracle Coherence – provides reliable distributed in-memory data management and caching services on top of a highly scalable peer-to-peer clustering protocol. (supported languages: Java, .NET, C++)

Coherence Product Files – in-memory data grid solution is a shared infrastructure that combines data locality with local processing power to perform real-time data analysis, in-memory grid computations, and parallel transaction and event processing.

Instalacja na Linux Fedora 14 (64 Bit)

Instalację OHS zaczynamy od zainstalowania Oracle WebLogic Servera. (do wyboru NetInstaller lub PackageInstaller)
./WebLogicServer_wersja_linux32.bin (u mnie instalka w trybie Console)

    |_____WebLogic Server [1] x
    |    |_____Core Application Server [1.1] x
    |    |_____Administration Console [1.2] x
    |    |_____Configuration Wizard and Upgrade Framework [1.3] x
    |    |_____Web 2.0 HTTP Pub-Sub Server [1.4] x
    |    |_____WebLogic SCA [1.5] x
    |    |_____WebLogic JDBC Drivers [1.6] x
    |    |_____Third Party JDBC Drivers [1.7] x
    |    |_____WebLogic Server Clients [1.8] x
    |    |_____WebLogic Web Server Plugins [1.9] x
    |    |_____UDDI and Xquery Support [1.10] x
    |    |_____Server Examples [1.11] x
    |    |_____Evaluation Database [1.12] x
    |_____Oracle Coherence [2] x
    |    |_____Coherence Product Files [2.1] x
    |    |_____Coherence Examples [2.2] x
    |_____Oracle Enterprise Pack for Eclipse [3] x
         |_____Common Files [3.1] x

   1|Add Local Jdk

1|WebLogic Server: [/home/oracle/Oracle/Middleware/wlserver_10.3]
2|Oracle Coherence: [/home/oracle/Oracle/Middleware/coherence_3.6]
3|Oracle Enterprise Pack for Eclipse:

The following Products and JDKs will be installed:

    WebLogic Platform
    |_____WebLogic Server
    |    |_____Core Application Server
    |    |_____Administration Console
    |    |_____Configuration Wizard and Upgrade Framework
    |    |_____Web 2.0 HTTP Pub-Sub Server
    |    |_____WebLogic SCA
    |    |_____WebLogic JDBC Drivers
    |    |_____Third Party JDBC Drivers
    |    |_____WebLogic Server Clients
    |    |_____WebLogic Web Server Plugins
    |    |_____UDDI and Xquery Support
    |    |_____Server Examples
    |    |_____Evaluation Database
    |_____Oracle Coherence
    |    |_____Coherence Product Files
    |    |_____Coherence Examples
    |_____Oracle Enterprise Pack for Eclipse
    |    |_____Common Files
         |_____SUN SDK 1.6.0_21
         |_____Oracle JRockit 1.6.0_22 SDK

    *Estimated size of installation: 1 665,9 MB

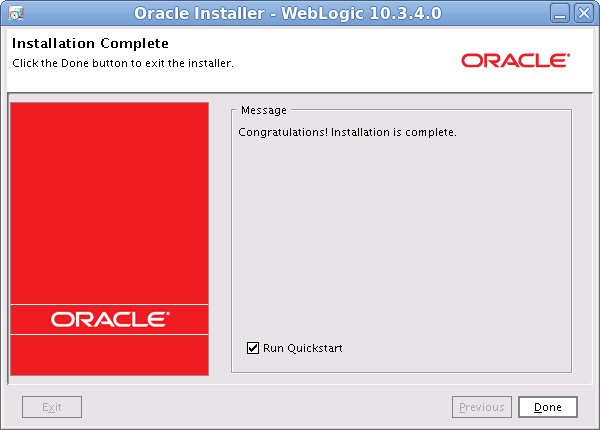

Installation Complete
Congratulations! Installation is complete.
Press [Enter] to continue or type [Exit]>

When the product installation is completed using graphical-mode installation, the QuickStart application is launched automatically, by default. If you do not want to run QuickStart at the completion of the installation process, you can clear the Run QuickStart check box in the Install Complete window. QuickStart is not invoked for console-mode or silent-mode installations.

QuickStart is designed to help first-time users evaluate, learn, and use Products software.

After installation, you can launch QuickStart as follows:
i tu pojawił się problemik z Javą:
Exception in thread “Main Thread” java.lang.UnsatisfiedLinkError: Can’t load library: /home/oracle/Oracle/Middleware/jrockit_160_22_D1.1.1-3/jre/lib/i386/xawt/libmawt.so
at java.lang.ClassLoader.loadLibrary(ClassLoader.java:1702)
at java.lang.Runtime.load0(Runtime.java:770)
at java.lang.System.load(System.java:1004)
at java.lang.ClassLoader$NativeLibrary.load(Native Method)
at java.lang.ClassLoader.loadLibrary0(ClassLoader.java:1803)
at java.lang.ClassLoader.loadLibrary(ClassLoader.java:1720)
at java.lang.Runtime.loadLibrary0(Runtime.java:823)
at java.lang.System.loadLibrary(System.java:1029)
at sun.security.action.LoadLibraryAction.run(LoadLibraryAction.java:51)
at java.awt.Toolkit.loadLibraries(Toolkit.java:1594)
at java.awt.Toolkit.<clinit>(Toolkit.java:1615)
at java.awt.Color.<clinit>(Color.java:263)
at javax.swing.plaf.metal.MetalTheme.<clinit>(MetalTheme.java:59)
at javax.swing.plaf.metal.MetalLookAndFeel.getCurrentTheme(MetalLookAndFeel.java:1673)
at javax.swing.plaf.metal.MetalLookAndFeel.createDefaultTheme(MetalLookAndFeel.java:1569)
at javax.swing.plaf.metal.MetalLookAndFeel.getDefaults(MetalLookAndFeel.java:1590)
at javax.swing.UIManager.setLookAndFeel(UIManager.java:514)
at javax.swing.UIManager.setLookAndFeel(UIManager.java:554)
at javax.swing.UIManager.initializeDefaultLAF(UIManager.java:1317)
at javax.swing.UIManager.initialize(UIManager.java:1407)
at javax.swing.UIManager.maybeInitialize(UIManager.java:1394)
at javax.swing.UIManager.getDefaults(UIManager.java:634)
at javax.swing.UIManager.put(UIManager.java:962)
at com.bea.quickstart.QuickStartController.<clinit>(QuickStartController.java:54)
Could not find the main class: com.bea.quickstart.QuickStartController. Program will exit.

Więc zrobimy wszystko porządnie, tak jak powinno być na 64 bitowych platformach w myśl zasady: “Gdy wszystko zawiedzie przeczytaj instrukcję” :-)

Ze strony Oracle (patrz źródła: Oracle WebLogic Server download)
Note: This table includes links to WebLogic Server installers that include 32-bit JVMs for the platform
in question, and links to WebLogic Server generic installers that can be used on any supported platform.
To use WebLogic Server with 64-bit JVM’s on Linux and Solaris or to use WLS on other supported
platforms, use the WebLogic Server generic installer listed under “Additional Platforms”. The generic
installers do not include a JVM/JDK. For instructions on using the generic installers, see this document.

pobieram: wls1034_generic.jar

Instaluję JDK (źródła: JDK download)
w katalogu /usr/local/bin

dla użytkownika oracle ustawiam zmienną PATH (.bash_profile):
export JAVA_HOME

java -d64 -version (sprawdzam czy jest OK)

Instaluję Oracle WebLogic Server

java -d64 -jar wls1034_generic.jar  – piękna graficzna instalka :-)

Tym razem pełny sukces :-)

Wybieram “Getting started with WebLogic Server”

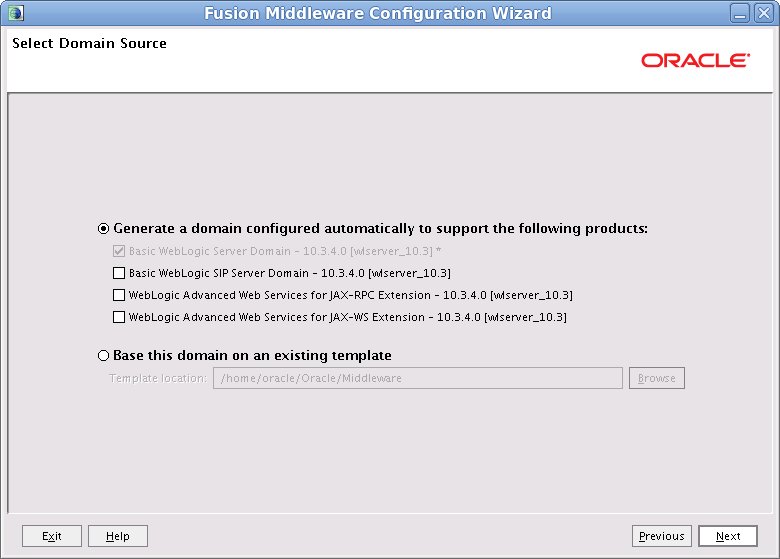

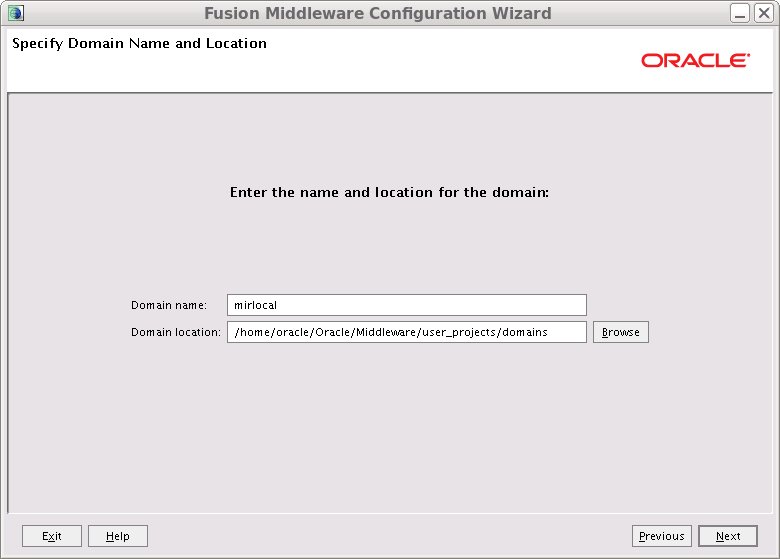

tworzę nową domenę:

cd /home/oracle/Oracle/Middleware/user_projects/domains/mirlocal/

./startWebLogic.sh (Administration Server)

można się zalogować na:

cd /home/oracle/Oracle/Middleware/user_projects/domains/mirlocal/bin


http://download.oracle.com/docs/html/E18558_01/fusion_requirements.htm (wymagania)
http://download.oracle.com/docs/cd/E12839_01/doc.1111/e14142/toc.htm (Oracle WebLogic Server)
http://onlineappsdba.com/index.php/2009/11/23/how-to-install-weblogic-server-on-64-bit-os-linux-solaris/ (instalacja WebLogic Server na platformach 64 bit)
http://www.oracle.com/technetwork/middleware/weblogic/downloads/wls-main-097127.html (Oracle WebLogic Server download)
http://www.oracle.com/technetwork/java/javase/downloads/index.html (JDK download)
http://download.oracle.com/docs/cd/E12839_01/wls.htm (Oracle WebLogic Server docs)
